德國Diebold JetSleeve ? 2.0 端面環噴熱縮刀柄

發布日期2017.12.04 ?|

作者：

來源：

德國Diebold JetSleeve ® 2.0 端面環噴熱縮刀柄

噴嘴環也是TIN涂層，這使得噴嘴更耐高壓介質，噴嘴不會磨損大小，所以不要改變直徑或流動方向。
通過創新的JetSleeve®2.0，一個工序就可以完成一個工件的全部加工，從而完全消除了磨損。 JetSleeve®2.0熱縮刀柄可用于重型加工，普通加工和微加工。
JetSleeve®在創新，環境和設計類別中榮獲多項獎項。

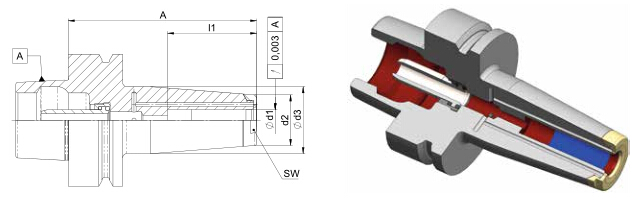

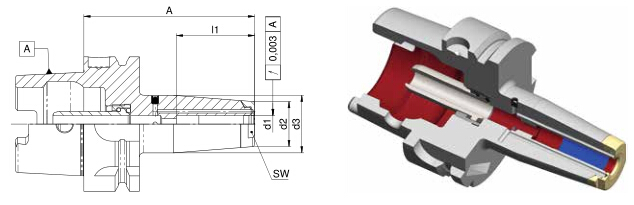

Diebold 熱縮夾頭HSK-A40
feingewuchtet G2,5 für 25.000 U/min.

Diebold 收縮夾頭HSK-A40

Order-No.	d1	d2	d3	l1max	A	SW	rpm
72.565.510.010	3	15	20	-	60	13	36000
72.565.510.040	4	15	20	-	60	13	36000
72.565.510.101	6	21	27	34	65	17	36000
72.565.510.201	8	21	27	36	65	17	36000
72.565.510.301	10	24	31	35	65	21	36000
72.565.510.401	12	24	31	35	65	21	36000

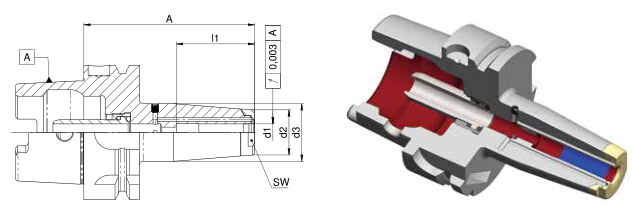

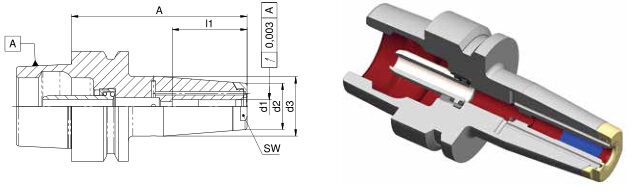

Diebold 熱縮夾頭HSK-A40 MMS

Diebold 收縮夾頭HSK-A40 MMS

Order-No.	d1	d2	d3	l1max	A	SW	rpm
72.565.512.010	3	15	20	28	60	13	36000
72.565.512.040	4	15	20	27	60	13	36000
72.565.512.101	6	21	27	32	65	17	36000
72.565.512.201	8	21	27	33	65	17	36000
72.565.512.301	10	24	31	33	65	21	36000
72.565.512.401	12	24	31	33	65	21	36000

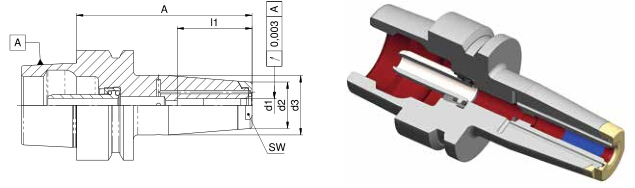

Diebold熱縮夾頭HSK-E40
feingewuchtet G2,5 für 25.000 U/min.

Diebold收縮夾頭HSK-E40

Order-No.	d1	d2	d3	l1max	A	SW	rpm
72.568.510.010	3	15	20	-	60	13	42000
72.568.510.040	4	15	20	-	60	13	42000
72.568.510.101	6	21	27	31	65	17	42000
72.568.510.201	8	21	27	36	65	17	42000
72.568.510.301	10	24	31	35	65	21	42000
72.568.510.401	12	24	31	35	65	21	42000

Diebold收縮夾頭HSK-E40 MMS

Diebold收縮夾頭HSK-E40 MMS

Order-No.	d1	d2	d3	l1max	A	SW	rpm
72.568.512.010	3	15	20	28	60	13	42000
72.568.512.040	4	15	20	28	60	13	42000
72.568.512.101	6	21	27	32	65	17	42000
72.568.512.201	8	21	27	33	65	17	42000
72.568.512.301	10	24	31	33	65	21	42000
72.568.512.401	12	24	31	33	65	21	42000

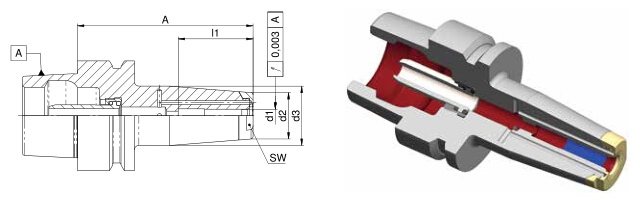

Diebold收縮夾頭HSK-A50
G2.5以25,000轉的速度精確平衡。

Diebold收縮夾頭HSK-A50

Order-No.	d1	d2	d3	l1max	A	SW	rpm
72.570.510.010	3	15	20	-	80	13	30000
72.570.510.040	4	15	20	-	80	13	30000
72.570.510.100	6	21	27	36	80	17	30000
72.570.510.200	8	21	27	36	80	17	30000
72.570.510.300	10	24	32	42	85	21	30000
72.570.510.400	12	24	32	46	90	21	30000
72.570.510.500	16	33	38	50	95	29	30000

Diebold收縮夾頭HSK-A50 MMS

Diebold收縮夾頭HSK-A50 MMS

Order-No.	d1	d2	d3	l1max	A	SW	rpm
72.570.512.010	3	15	20	-	80	13	30000
72.570.512.040	4	15	20	-	80	13	30000
72.570.512.100	6	21	27	36	80	17	30000
72.570.512.200	8	21	27	36	80	17	30000
72.570.512.300	10	24	32	42	85	21	30000
72.570.512.400	12	24	32	46	90	21	30000
72.570.512.500	16	33	38	50	95	29	30000

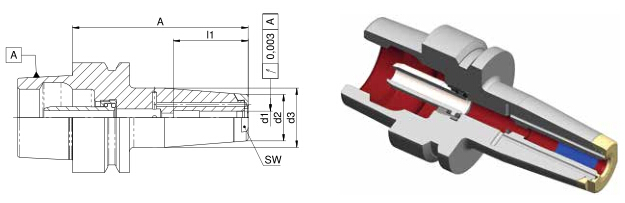

Diebold收縮夾頭HSK-E50
G2.5以25,000轉的速度精確平衡。

Diebold收縮夾頭HSK-E50

Order-No.	d1	d2	d3	l1max	A	SW	rpm
72.573.510.010	3	15	20	-	80	13	42000
72.573.510.040	4	15	20	-	80	13	42000
72.573.510.100	6	21	27	34	80	17	42000
72.573.510.200	8	21	27	36	80	17	42000
72.573.510.300	10	24	32	42	85	21	42000
72.573.510.400	12	24	32	46	90	21	42000
72.573.510.500	16	33	42	50	95	29	42000

Diebold收縮夾頭HSK-E50 MMS

Diebold收縮夾頭HSK-E50 MMS

Order-No.	d1	d2	d3	l1max	A	SW	rpm
72.573.512.010	3	15	20	38	80	13	42000
72.573.512.040	4	15	20	38	80	13	42000
72.573.512.100	6	21	27	34	80	17	42000
72.573.512.200	8	21	27	36	80	17	42000
72.573.512.300	10	24	32	42	85	21	42000
72.573.512.400	12	24	32	46	90	21	42000
72.573.512.500	16	33	42	50	95	29	42000

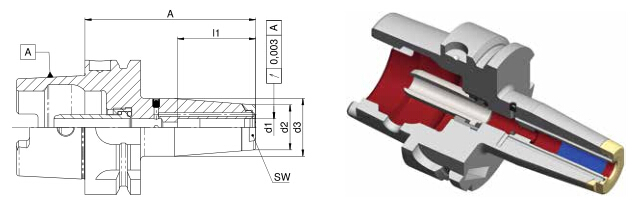

Diebold收縮夾頭HSK-A63
G2.5以25,000轉的速度精確平衡。

Diebold收縮夾頭HSK-A63

Order-No.	d1	d2	d3	l1max	A	SW	rpm
72.575.510.010	3	15	20	-	90	13	24000
72.575.510.040	4	15	20	-	90	13	24000
72.575.510.101	6	21	27	36	80	17	24000
72.575.510.201	8	21	27	36	80	17	24000
72.575.510.301	10	24	32	42	85	21	24000
72.575.510.400	12	24	32	47	90	21	24000
72.575.510.500	16	33	42	50	95	29	24000
72.575.510.600*	20	44	53	52	100	40	24000

Diebold收縮夾頭HSK-A63 MMS

Diebold收縮夾頭HSK-A63 MMS

Order-No.	d1	d2	d3	l1max	A	SW	rpm
72.575.512.010	3	15	20	-	90	13	24000
72.575.512.040	4	15	20	-	90	13	24000
72.575.512.101	6	21	27	36	80	17	24000
72.575.512.201	8	21	27	36	80	17	24000
72.575.512.301	10	24	32	42	85	21	24000
72.575.512.400	12	24	32	47	90	21	24000
72.575.512.500	16	33	42	50	95	29	24000
72.575.512.600*	20	44	53	52	100	40	24000

Diebold收縮夾頭HSK-F63
G2.5以25,000轉的速度精確平衡。

Diebold收縮夾頭HSK-F63

Order-No.	d1	d2	d3	l1max	A	SW	rpm
72.579.510.010	3	15	20	-	90	13	36000
72.579.510.040	4	15	20	-	90	13	36000
72.579.510.100	6	21	27	36	90	17	36000
72.579.510.200	8	21	27	36	90	17	36000
72.579.510.300	10	24	32	42	90	21	36000
72.579.510.400	12	24	32	47	90	21	36000
72.579.510.500	16	33	42	50	95	29	36000
72.579.510.600*	20	44	53	52	100	40	36000

Diebold收縮夾頭HSK-F63 MMS

Diebold收縮夾頭HSK-F63 MMS

Order-No.	d1	d2	d3	l1max	A	SW	rpm
72.579.512.010	3	15	20	-	90	13	36000
72.579.512.040	4	15	20	-	90	13	36000
72.579.512.100	6	21	27	36	90	17	36000
72.579.512.200	8	21	27	36	90	17	36000
72.579.512.300	10	24	32	42	90	21	36000
72.579.512.400	12	24	32	47	90	21	36000
72.579.512.500	16	33	42	50	95	29	36000
72.579.512.600*	20	44	53	52	100	40	36000

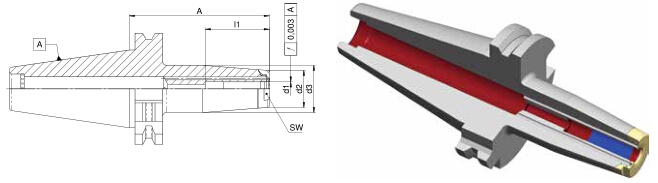

Diebold收縮夾頭SK40
DIN 69871 A-D
G2.5以25,000轉的速度精確平衡。

Diebold收縮夾頭SK40

Order-No.	d1	d2	d3	l1max	A	SW	rpm
72.060.510.010	3,0	15,0	20,0	-	80	13	18000
72.060.510.040	4,0	15,0	20,0	-	80	13	18000
72.060.510.100	6,0	21,0	27,0	36	80	17	18000
72.060.510.200	8,0	21,0	27,0	36	80	17	18000
72.060.510.300	10,0	24,0	32,0	42	80	21	18000
72.060.510.400	12,0	24,0	32,0	47	80	21	18000
72.060.510.500	16,0	33,0	42,4	50	80	29	18000
72.060.510.600*	20,0	44,0	50,0	52	80	40	18000

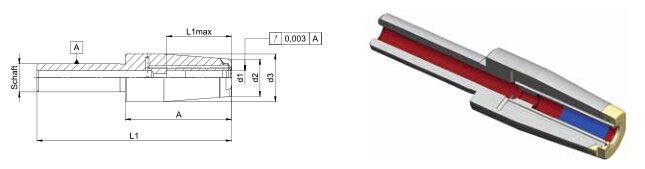

Diebold Shrink Fit Reductions

Order-No.	Shank	d1	d2	d3	l1	A	SW	l1max
75.510.203	zyl.16	3	15	20	110	60	13	-
75.510.204	zyl.16	4	15	20	110	60	13	-
75.510.206	zyl.16	6	21	27	110	60	17	36
75.510.208	zyl.16	8	21	27	110	60	17	36
75.510.310	zyl.20	10	24	32	110	65	21	42
75.510.312	zyl.20	12	24	32	110	65	21	46
